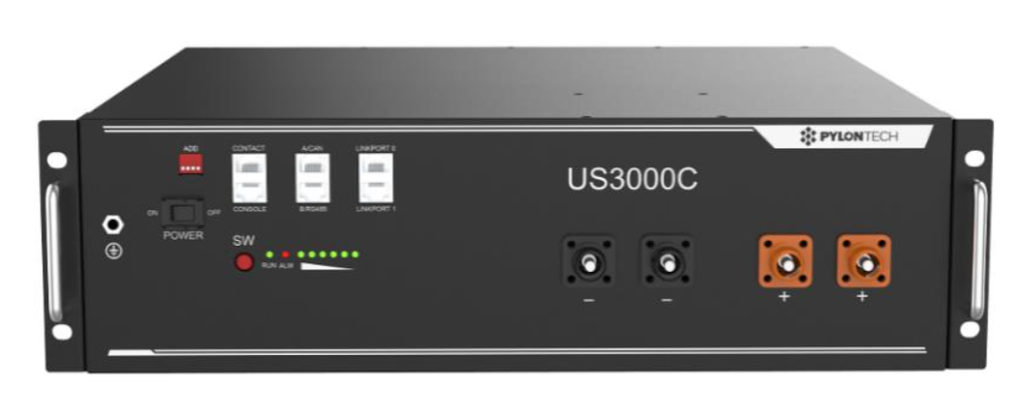

Pylon US3000C 3.5kWh Li-Ion Solar Battery

The US3000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abormal temperature, current, voltage, SoC and SoH.

The Pylontech US3000C has an incredible DoD of 95%.

View a complete range of hybrid storage systems and design a bespoke solution in seconds using Quick Quote.

You can now register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.

Please check battery communication and settings, before connecting grid or PV. A charge voltage over 53.2V will damage the battery.


Important:
DIP switch has been deployed reversely. ON is down, OFF is UP. If DIP switches need to be 1000 then set it to 1110. MAX DISCHARGE AND CHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS. The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter. Due to the ongoing effect of Covid-19 and the worldwide chip shortage, certain suppliers had to resort to alternative component suppliers. This has affected the compatibility of specific inverter and battery combinations. Please see the Application Note New Pylontech firmware or Application Note Kodak user settings for more info.
